ASTER V2 is a younger brother of well-known TITAN V2. This world's first 4th generation AEG Control System is destined for most of AEGs with gearbox V2 on the market (including stock, low- and mid-tuned) and even for high-tuned guns (in case of EXPERT firmware). It was designed to achieve maximum reliability at attractive price and hence it has extremely profitable price-performance ratio.
Transform your AEG by replacing trigger contacts with computerized controller equipped with innovative optical sensors, including proximity trigger sensor which offers even 250 sensitivity settings. Gain unique tactical advantage thanks to extremely fast trigger response and lots of other useful functions. ASTER's smart fuse protects your AEG’s battery, motor and the controller, even in case of reverse battery connection. This feature, along with the optical sensors, makes ASTER the most durable drop-in unit on the market. You choose how to configure ASTER – simply via trigger or through USB-Link / Blu-Link* and our advanced GCS app. To enjoy full potential of ASTER, you can upgrade its firmware to ADVANCED or EXPERT.
*Blu-Link is future GATE Bluetooth® dongle
ASTER is not just another drop-in MOSFET. It is a part of GATE ecosystem that turns your AEG into an advanced training weapon.
What is a drop-in module? It is an electronic unit replacing the trigger contacts and the cut-off lever, which takes control of your AEG.
ASTER is available in 3 firmware editions: BASIC, ADVANCED and EXPERT.
- BASIC: The best for those who prefer simplicity but require highest quality. Economic version with limited number of functions. If you decide to have more functions, there is always option to upgrade firmware from BASIC to ADVANCED or EXPERT.
- ADVANCED: The best for those who like complex solutions. Advanced version with wide variety of functions. It enables access to the Statistics and ASTER World Rankings.
- EXPERT: The best for experienced airsofters. Vast diversity of settings and options combined with maximum configuration capabilities allow you to prepare for the most demanding mission (EXPERT firmware was released in Fall 2019 together with GCS Big Update).
The table below contains functional comparison of settings configured via trigger and across firmware editions. The comparison applies to ASTER possibilities and TITAN functionality after GBU firmware update. You need to purchase USB-Link or Blu-Link to connect ASTER with GATE Control Station.
In order to upgrade your ASTER, you need to purchase the upgrade:
ASTER gives you the option to adjust:
FIRE SELECTOR MODES (gen. 2)
Two selector sensors allow you to take advantage of up to 343 fire selector modes variations, depending on the device firmware edition. The following modes are avaialble for selection*:
Safe – it prevents your gun from firing, even if safety lever is removed
Semi – allows you to fire one shot per one trigger pull
Binary – allows for firing one shot on the trigger pull and another shot upon release
Burst – enables you to shoot a pre-determined number of BBs, which is very useful in MILSIMs and when using low-caps. There are 2 Burst modes available:
Burst / Auto – available for Full burst mode only; it allows for extending a burst by any number of shots – if you hold the trigger after the burst is shot, it switches to Auto mode
Auto – shots are fired as long as the trigger is pulled
Semi Ramping – if you pull the trigger very fast, it switches to Auto mode
*You can check fire selector configuration possibilites provided by particular firmware editions here.
Please note: In case of Regional lock, only Semi mode is available. Check the law in your country.
PRE-COCKING (gen. 1.5)
Victory in the game is often a matter of fractions of seconds. Thanks to Pre-cocking, you gain trigger reaction similar to a real gun. It allows for initial spring compression, which significantly speeds up the trigger response. The spring is automatically compressed after each shot.
Manual mode – it allows you to set pre-cocking boost time between 1–250 ms with 1 ms precision and provides automatic voltage drop compensation. Pre-cocking is fully operational regardless of fire selector mode.
Please note: Using Pre-cocking increases wear and tear on the gearbox.
This feature allows for simulating magazines of lower capacity than actually used. Even if you have a high capacity magazine, this function lets you truly increase realism of your game by imitating that your magazine is real-cap. Then, after pre-determined number of BBs is shot, you will have to wait for previously defined amount of time before a next shot can be fired, as if you were really replacing empty magazine with a full one. In case of ADVANCED and EXPERT firmware, you can also set Low ammo warning.
SERIES SAFETY LIMIT
An AEG can continuously fire a predefined number of BBs in a single series. This can be used as protection against trigger jam. Important notice: In case of an emergency, you can always stop firing by switching the fire selector position.
It lets you set delay between shots or series to simulate the delay from reload or recoil. You can set 0.2 s, 0.5 s,1 s,2 s or 3 s delay for ADVANCED firmware and 0.01–5 s for EXPERT firmware.
This enables a reduction in a gun's rate of fire. You use stronger LiPo batteries, and still have a ROF just like in a real gun.
Power – uses PWM to decrease ROF. Thanks to this, gearbox works smoothly, which decreases wear and tear of AEG internal parts.
Delay – adds breaks between shots to decrease ROF. It gives you more realistic experience.
Adaptive – you just need to set your desired rate of fire. Then, power and delay are automatically adjusted to achive this ROF
BASIC firmware: 6 Power settings
ADVANCED firmware: 6 Power and 6 Delay settings
EXPERT firmware: Power: 100–1%, Delay: 5–1000 ms or Adaptive: 1–100 RPS
We know how vital the fast trigger response is during combat. This is why we have developed the Smart Trigger function. It enables you to achieve faster trigger response. It works with the ROF Control System. During the first shot, the microprocessor sets the ROF control to 100%. After the first shot, it switches to a previously programmed value (e.g. 50%). As a consequence, the first shot is fired at a full ROF, and subsequent shots at a reduced ROF. The best results can be achieved when using a battery with voltage higher than standard. For example, if you use a 7.4 V battery, you can replace it with 11.1 V. In this way, you will achieve faster trigger response with the same rate of fire than with a standard battery.
BATTERY PROTECTION (gen. 2)
Protection against over-discharge of the battery. Modern LiPo and LiFe batteries are very sensitive to over-discharge. If you do not want to damage the battery and you care about its service life, this protection is indispensable. The microprocessor monitors the battery voltage constantly. When the voltage drops down to a critical level, it will not allow firing. The number of battery cells can be detected automatically.
LOW BATTERY WARNING
When the battery voltage drops to a predefined level, the motor will vibrate at regular intervals. A user is warned 5 times before the battery is discharged. Each warning is communicated by 3 vibrations: HIGH → MID → HIGH.
ADAPTIVE ACTIVE BRAKE
It automatically adjusts the motor's braking power according to your needs. This prolongs the lifespan of the motor. There is also an option to set the motor braking power manually.
It enables dynamic trigger point, which allows you to shot even faster.
Off – to fire a next shot, you need to release the trigger until it reaches the selected trigger sensitivity level
• 2LVL – to fire a next shot, it is enough to release the trigger by ~40% of trigger movement
CYCLE DETECTION (gen. 1.5)
Thanks to the gear cam sensor, drop-in unit precisely detects in which position the cycle should finish. Therefore, even the shortest trigger action produces at least one full cycle. The sensor detects the gear cam instead of teeth, so it is possible to use all types of gears: Infinite Torque-up, DSG, SSG, 19-tooth and standard.
Thanks to the cycle detection function you get:
Available in EXPERT firmware.
You can enable or disable information and warning vibrations, and make your gun stealth.
Available in EXPERT firmware.
Other amazing ASTER features include:
This feature allows you to troubleshoot your AEG in case of any issue. Errors are communicated once they occur, and their description can be found in the GCS app.
As of GCS Big Update, you are able to save and store different packages of GCS settings.
GCS allows for making firmware updates via the internet, which enables you to quickly apply changes, improvements and bug fixes.
SMART FUSE (gen. 2)
Smart fuse protects your AEG’s battery, motor and the controller, even in case of reverse battery connection. A combination of current, voltage and temperature measurements makes your AEG installation highly reliable. It protects the MOSFET against overheating, overloading and short-circuiting. If your airsoft gun becomes jammed, this function protects the motor and battery against damage. To reset the fuse, you just need to release the trigger.
Do you want to achieve a higher ROF and faster trigger response? Are you planning a power upgrade of your gun? In that case, you need a MOSFET.
It targets the energy from the battery directly to the motor, bypassing the mechanical trigger contacts. As a result, you gain a higher ROF of the gun and a faster trigger response.
This allows you to quickly check whether the drop-in module is working properly. It helps to locate where the problem lies when anything goes wrong.
Thanks to its special conformal coating, our product is resistant to atmospheric conditions (Military Specification MIL-V-173C).
Make your adventure start more easily with a new product. The quickstart contains basic information and hints.
- Support for stock and mid-tuned AEGs (high-tuned AEGs are supported in case of EXPERT firmware edition)
- Maximum operating voltage: 12.75 V (LiPO 11.1 V)
- Minimum operating voltage: 3 V
- Absolute maximum voltage: 17 V
- Conformal coating (Military Specification MIL-V-173C) – resistance to atmospheric conditions

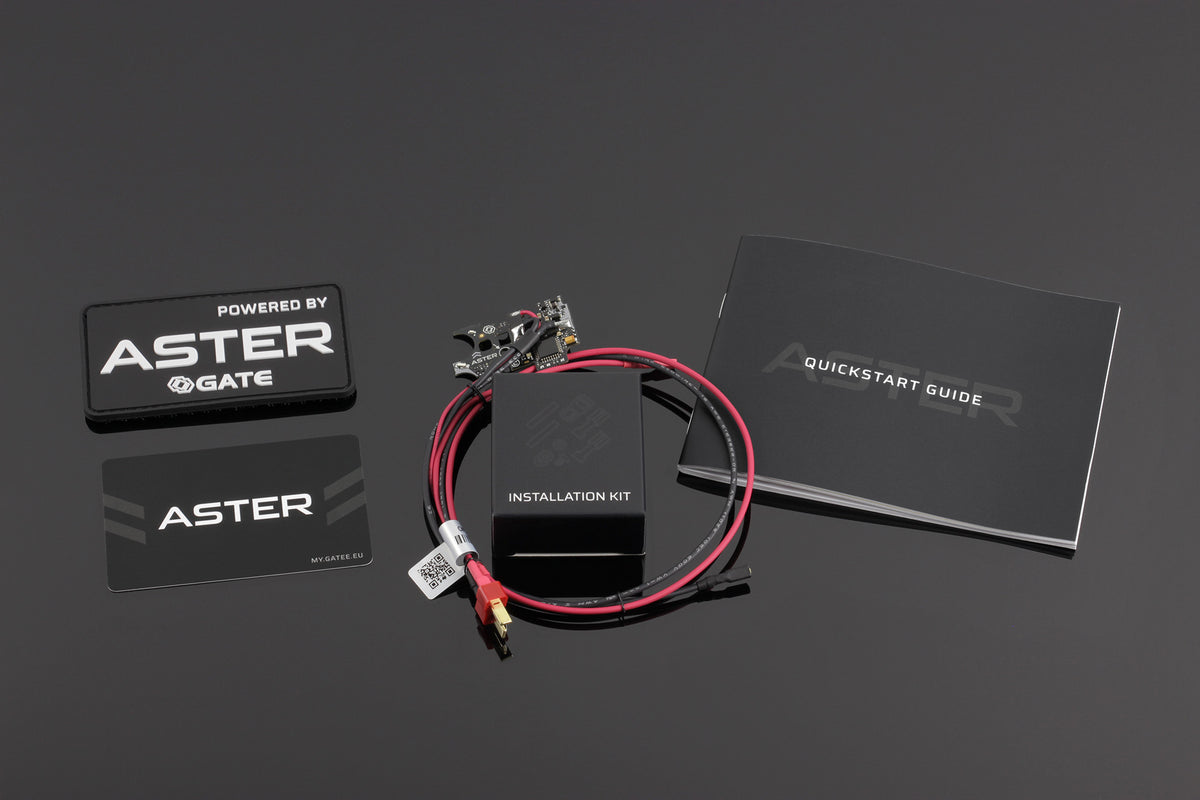

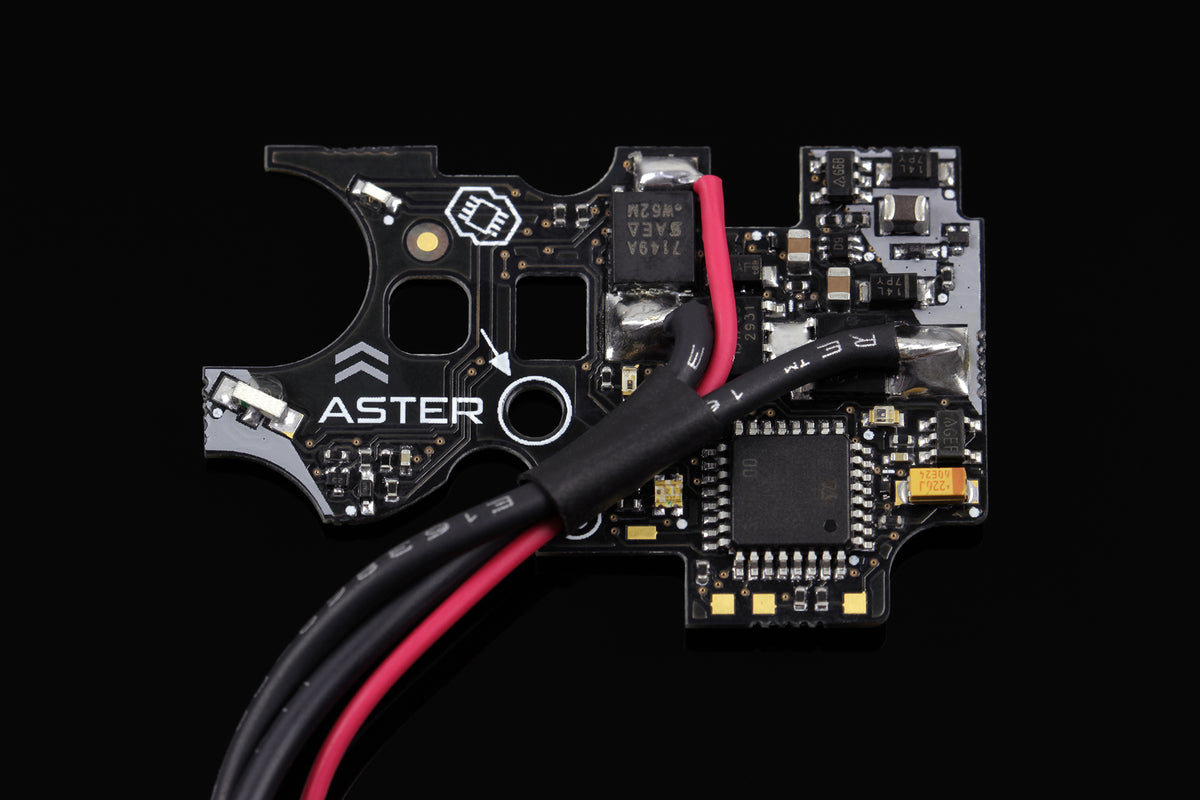

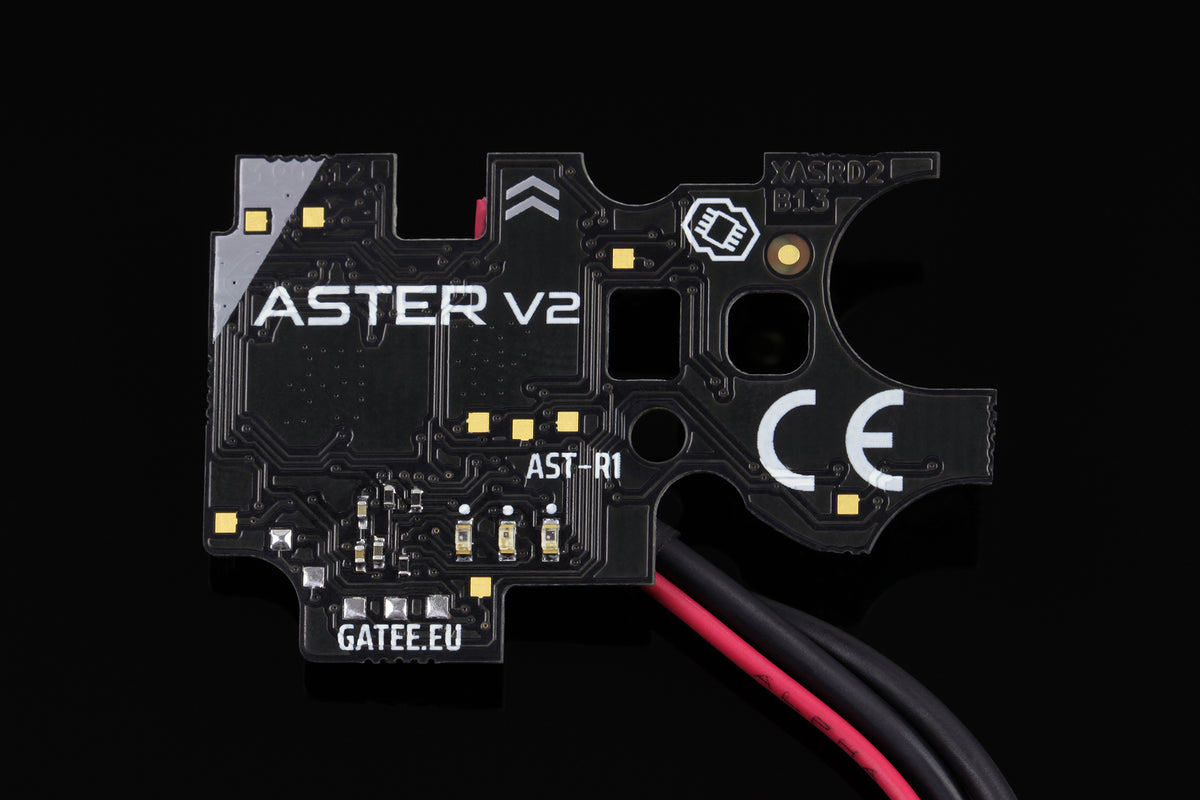

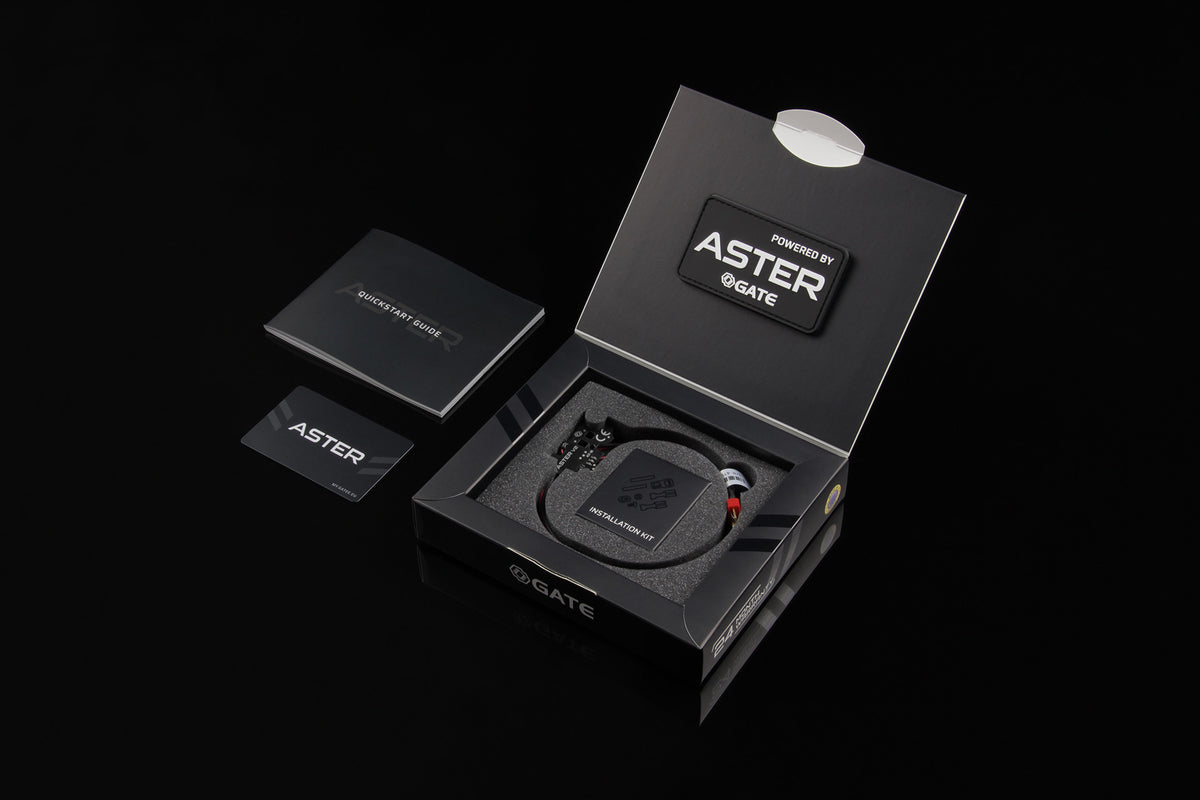

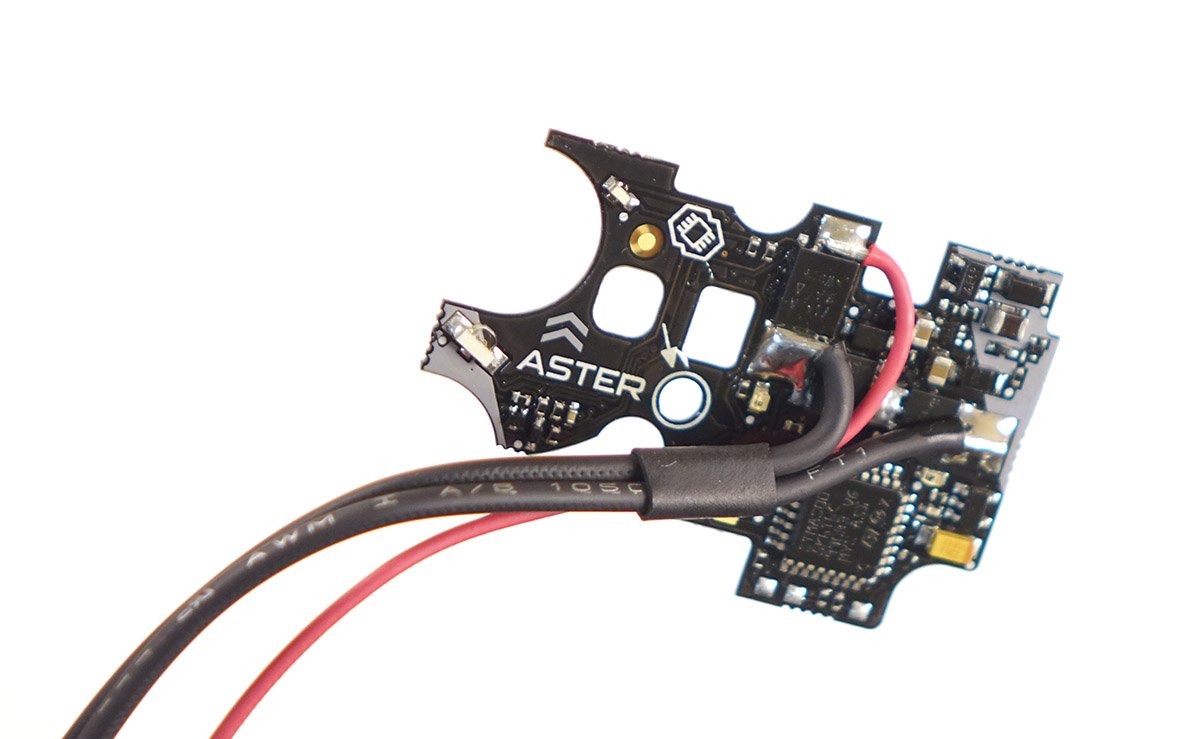

- ASTER Module with BASIC firmware edition (rear or front wired)
- ASTER Patch
- 'Programming via Trigger' Card
- Installation Kit
- Quickstart Guide
Please note: In order to configure ASTER via GCS app, you need the USB-Link or Blu-Link, which is not included in the kit.
