GATE TITAN V2 Basic Mosfet (Rear wired)

  • Sale
  • Regular price $139.99



TITAN V2™ is an AEG Control System for V2 gearboxes which will transform your AEG into an advanced training weapon. Adjust your AEG using USB-Link and GATE Control Station app for PC and Android devices. Gain a tactical advantage thanks to the extremely fast trigger response, option of adjusting trigger sensitivity to your preferences and many other useful functions. Give your AEG a new lease of life!

Thanks to the optical sensors we have eliminated the problem of faulty switches that can occur in competitors drop-in mosfets. The trigger has no mechanical connections with the PCB. This eliminates mechanical stresses and provides for high reliability.

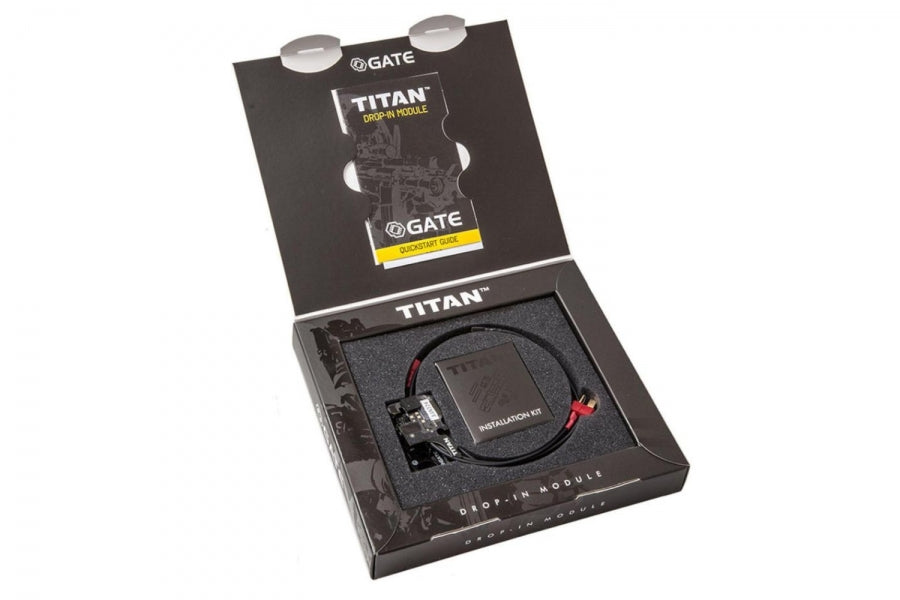

  1. TITAN V2 with BASIC firmware edition (rear wired)
  2. Installation Kit
  3. Quickstart Guide

The BASIC firmware edition is an economic version with limited number of functions, dedicated for those who prefer simplicity but require highest quality.  If you decide to have more functions, there is always option to upgrade firmware from BASIC to ADVANCED.



NOTICE!

In order to configure TITAN, you need the USB-Link or Tactical Programming Card which is not included in this kit.

If you can come into 007 Airsoft showroom for a store visit, we will program your Titan free of charge with our USB-Link.

Krytac AEGs gearboxes are proprietory and requires heavy modification to accept the Gate Titan.

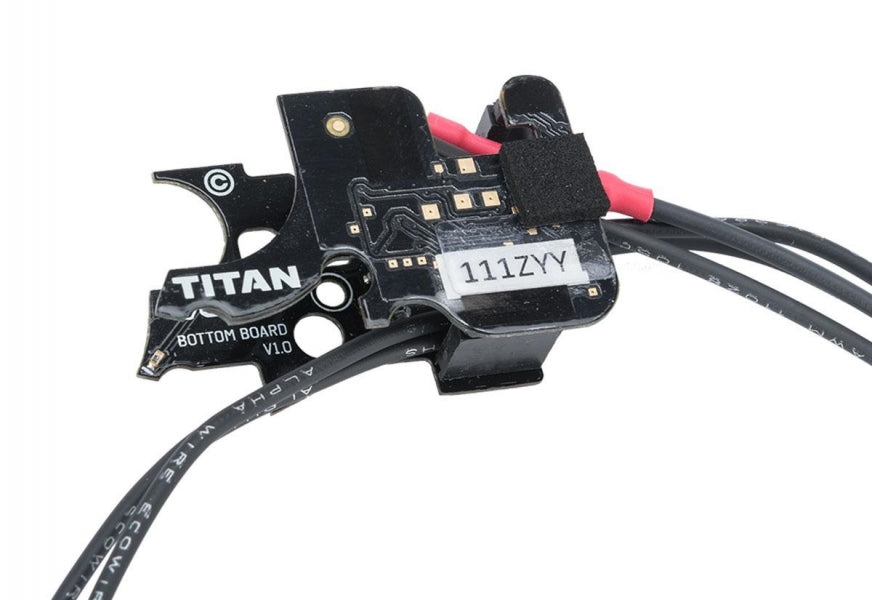

TITAN

Unit type: Drop-in MOSFET, Gearbox type: V2

TITAN gives you the option to adjust:

  • Trigger sensitivity
  • Pre-cocking boost
  • Fire selector mode
  • Burst mode
  • Rate of fire
  • Low battery warning
  • Battery protection
  • Sniper delay
TITAN

GATE Control Station™

Simply update the firmware and/or adjust the settings at home, using the USB-Link and the GATE Control Station™ computer App.

GATE Control Station download page.

TITAN

USB-Link

The USB-Link works in tandem with the GATE Control Station™ App, giving you full access to TITANs functions and allows you to update the firmware of the drop-in module and the Tactical Programming Card.

Get ready for the amazing functions such as:

TRIGGER SENSITIVITY ADJUSTMENT

Five trigger sensors allow you to control trigger sensitivity. You do not have to disassemble your AEG. Just use the Tactical Programming Card or the GATE Control Station™ App to adjust the trigger to your preferences and level of skills.



CONFIGURABLE FIRE SELECTOR (gen.2)

Two selector sensors allow you to use up to six fire selector modes, including innovative SEMI-BURST-AUTO mode:

  • SAFE-SEMI-AUTO
  • SAFE-SEMI-SEMI
  • SAFE-SEMI-BURST
  • SAFE-BURST-AUTO
  • SAFE-SEMI-BURST/AUTO (short press - BURST, long press - AUTO)
  • SEMI-BURST-AUTO (SAFE mode via the fast switch SAFE-SEMI-SAFE)


CYCLE DETECTION

Thanks to the gear sensor, TITAN precisely detects in which position the cycle should finish. Therefore, even the shortest trigger action produces at least one full cycle.

Thanks to the cycle detection function you get:

  • Automatic BURST – there is no need to set the burst time. You can set the burst between two and 10 shots;
  • Automatic PRE-COCKING – Pre-cocking is fully operational in SEMI, BURST and AUTO modes and there is no need to set the pre-cocking boost manually. You can simply set the pre-cocking as high, mid or low;
  • FULL CYCLE - when the pre-cocking is off, TITAN ensures that the gearbox completes a full cycle. You gain a higher reliability.


PRE-COCKING (gen.2*)

Victory in the game is often a matter of fractions of seconds. Thanks to PRE-COCKING, you gain a trigger reaction similar to a real gun. It allows for initial spring compression, which speeds up the trigger response significantly.

  1. AUTO MODE – the spring is automatically compressed after each shot,
  2. TRIGGER MODE – slow trigger action compresses the spring, and fast trigger action fires the shot.

And three PRE-COCKING BOOST options: HIGH / MID / LOW


*Now the pre-cocking is fully operational in SEMI, BURST and AUTO modes and there is no need to set the pre-cocking boost manually

Please note: using PRE-COCKING increases wear and tear on the gearbox.



BURST (gen.2*)

The burst enables you to shoot a pre-determined number of BBs, which is very useful in MILSLIM and when using low-caps.


* There is no need to set burst time. You can easily set burst between two and 10 shots.



ROF CONTROL

This enables a reduction in a guns rate of fire. You use stronger LiPo batteries, and still have a ROF just like in a real gun.



ROF STAB

It allows you to change the way the ROF Control works:
ON - ROF Control uses PWM to decrease ROF. Thanks to this gearbox works smoothly what decreases wear and tear of AEG internal parts.
OFF - ROF Control adds breaks between shots to decrease ROF. It gives you more realistic experience.



SNIPER DELAY

It lets you to set delay between each SEMI shots to simulate the delay from reload or recoil. You can set 0.5s1s2s or 3s delay.



SMART TRIGGER

We know how vital the fast trigger response is during combat. This is why we have developed the Smart Trigger function. It enables you to achieve a faster trigger response. It works with the ROF Control System. During the first shot, the microprocessor sets the ROF Control to 100%. After the first shot, it switches to a previously programmed value (e.g. 50%). As a consequence, the first shot is fired at a full ROF, and subsequent shots at a reduced ROF. The best results can be achieved by using a battery with a higher than standard voltage. For example, if you use a 7.4V battery, you can replace it with 11.1V. In this way, you will achieve a faster trigger response with the same rate of fire as with a standard battery.

*Works only when ROF STAB is ON.



AUG MODE

Enjoy two stage trigger. Activate AUG Mode and set two different trigger sensitivities. Pulling the trigger slightly produces SEMI or BURST fire and pulling the trigger further produces BURST or AUTO fire (depending on the fire selector mode).



BATTERY PROTECTION (gen.2*)

Protection against Over-Discharge of the Battery. Modern LiPo and LiFe batteries are very sensitive to over-discharge. If you do not want to damage the battery and you care about its service life, this protection is indispensable. The microprocessor monitors the battery voltage constantly. When the voltage drops down to a critical level, it will not allow firing.


*TITAN detects the number of cells automatically. There is no need to reprogram TITAN every time you replace the battery.



LOW BATTERY WARNING

When the battery voltage drops to a predefined level, the motor will vibrate at regular intervals.



SMART FUSE

We have developed an electronic fuse with an accurate current sensor. A combination of current, voltage and temperature measurements makes your AEG installation highly reliable. It protects the MOSFET against overheating, overloading and short-circuiting. If your airsoft gun becomes jammed, the function protects the motor and battery against damage.



ADAPTIVE ACTIVE BRAKE

It automatically adjusts the motors braking power according to your needs. This prolongs the lifespan of the motor.



MOSFET

Do you want to achieve a higher ROF and faster trigger response? Are you planning a power upgrade of your gun? In that case, you need a MOSFET.

It targets the energy from the battery directly to the motor, bypassing the mechanical trigger contacts. As a result, you gain a higher ROF of the gun and a faster trigger response.



BUILT-IN SELF-TEST

This allows you to quickly check whether the drop-in module is working properly. It helps to locate where the problem lies when anything goes wrong.



COATING

Thanks to its special conformal coating, our product is resistant to atmospheric conditions (Military Specification MIL-V-173C).



DEANS-T READY

The product has factory-fitted low-resistance deans-t connectors.



MINI-TAMIYA ADAPTER

Thanks to the Mini Tamiya Adapters included in the kit, you can smoothly connect the drop-in module to your original (stock) installation.



14.8V LI-PO READY

The drop-in module can be used with batteries up to and including 14.8V LI-PO. The minimum operating voltage is 3V and maximum is 17V.



PRINTED QUICKSTART

Make your adventure start more easily with a new product. The quickstart contains basic information and hints.



TITAN

TITAN has no less than eight sensors!

  • 1 gear sensor
  • 2 selector sensors
  • 5 trigger sensors



Thanks to the optical sensors we have eliminated the problem of faulty switches that can occur in competitors drop-in mosfets. The trigger has no mechanical connections with the PCB. This eliminates mechanical stresses and provides for high reliability.

GATE CTO, April 2016

  • Automatic BURST – there is no need to set burst time. You can set burst between two and 10 shots;
  • Automatic PRE-COCKING – Pre-cocking is fully operational in SEMI, BURST and AUTO mode and there is no need to set pre-cocking boost manually. You can easily set the pre-cocking as high, mid or low;
  • FULL CYCLE - when the precocking is off, TITAN ensures that the gearbox always makes full cycles.

You can trust TITAN because:

  • Every time you pull the trigger gearbox completes the correct cycle. The gears stop exactly where they should. The gearbox works efficiently.
  • It is protected against short-circuits, overheating and overloading
  • It protects the battery against over-discharge
  • It significantly improves battery life, rate of fire, spring life and gearbox reliability (when pre-cocking is off)
  • It is compatible with the strongest AEG replicas and batteries (ready to use with LiPo 14.8V, 5000 mAh, 60C)

Why TITAN is so special?

  • It has a user-friendly configuration via the Tactical Programming Card and/or GATE Control Station
  • It has option to make firmware updates via the internet
  • It has innovative optical sensors instead of mechanical switches that can be prone to faults
  • It replicates a trigger response like in a real gun
  • It replaces the cut-off lever
  • It is compatible with DSG and SSG gears
  • It is compatible with most v2 gearboxes (including cnc) on the market without any modification

TITAN is a modular system which includes:

    1. TITAN Drop-in Module (rear or front wired)
    2. TITAN Tactical Programming Card
    3. USB-Link for GATE Control Station™ App

What is the difference between using Tactical Programming Card or USB-Link?

The main difference is that the Tactical Programming Card is small, lightweight and portable. Using USB-Link with GATE Control Station™ gives more functions, including firmware update and requires connection to PC.

  Tactical Programming Card USB-Link with GATE-CS
Settings adjustment + +
Firmware update - +
Portable + -
Sensors check + +
Diagnostic Trouble Codes + +
Statistics - +
Additional settings - +

TITAN

FIRMWARE EDITIONS

The TITAN is currently available in two firmware editions: BASIC and ADVANCED. In the future, the EXPERT edition will be also available. The table on the left shows differences between the BASIC and ADVANCED firmware editions.

  • BASIC: The best for those who prefer simplicity but require highest quality. Economic version with limited number of functions. If you will decide to have more functions, there is always option to upgrade firmware from BASIC to ADVANCED.
  • ADVANCED: The best for those who like complex solutions. Advanced version with wide variety of functions. It enables access to the Statistics and TITAN World Rankings.

In order to upgrade your TITAN firmware from BASIC to ADVANCED, you need to purchase the upgrade:

TITAN Advanced Firmware Edition Upgrade
